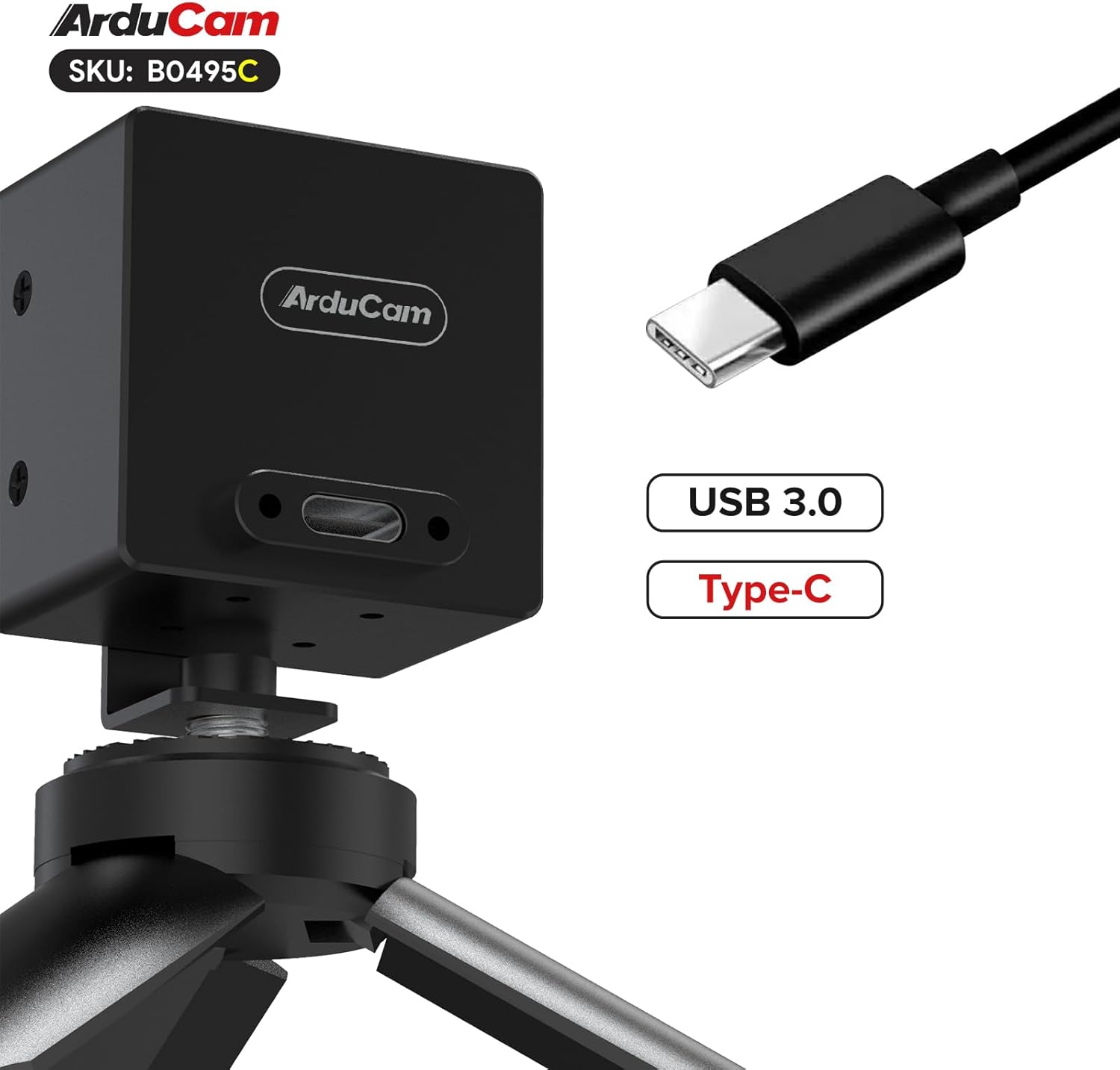

Arducam USB 3.0 Camera, 960 * 600@80fps High-Speed Global Shutter UVC Camera Module, 1/2.6″ 2.3MP Color AR0234 USB Webcam with 95°(D) M12 Lens for Windows and Linux
€148
Price: $147.99
(as of Aug 03, 2025 11:46:24 UTC – Details)
Product Description
Overview
Arducam’s USB 3.0 camera series presents the AR0234 color global shutter model. Featuring a 1/2.6″ 2.3MP CMOS, it attains a max still resolution of 1920×1200. Now supporting YUYV format output for uncompressed, high-quality images. The global shutter and rapid 80 fps frame rate ensure silky smooth HD video.
The camera boasts an M12 low-distortion lens with a 95° diagonal field of view, delivering more accurate, distortion-free images.
Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.
Image Sensor & Lens
Still Resolution 2.3 Megapixels Color Filter Type Color Shutter Type Global Shutter Optical Size 1/2.6″ Output Format YUY2 Pixel Size 3 µm x 3 µm Sensor Active Area 1920(H)×1200(V) Frame Rate (USB 3.0) 1920*1200@50fps, 960*600@80fps Frame Rate (USB 2.0) 960*600@10fps Focus Type Manual Focus FOV 98°(D)×85°(H)×69°(V) Lens Mount M12 F.NO F2.5 E.F.L 3.56mm IR Sensitivity Integral IR-cut Filter, visible light only Default Focus Range 2m-∞
USB Interface & Electrical and Mechanical & Functionality and Compatibility
Interface USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts Connector Type-C reversible interface connector UVC Compliant No additional drivers required Operating Voltage 5 V +/- 5% Operating Temp. 32°F-158°F (0°C to 70°C) Power Requirements Max: 1.45W , Min: 0.92W Camera Board Size 34×34 mm Supported OS Windows, Linux Recommend Sample Application PotPlayer for Windows, qv4l2 for Linux UVC Controls Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Exposure (Manual/Auto)
Applications
Machine VisionVideo Surveillance3D Scanning and MetrologyLive StreamingVideo Conferencing
Outstanding Imaging: This manual focus USB camera is utilizes a 2.3MP Global Shutter AR0234 sensor for sharpness, achieving a max still resolution of 1920×1200
Fast and Precise: This webcam has flexible Frame Rates, programmable up to 960×600@80fps. M12 lens with low distortion, manual focus, and a 95°(D) field of view for monitoring clarity
Color Global Shutter: This PC camera can capture crisp images of high-speed motion, free from rolling artifacts
Advanced Image Enhancement: On-board ISP with proprietary tech ensures top-tier image quality through de-Bayer, gamma, BLC, AE, AWB, CCM, and RGB2YUV processes
Plug and Play: This USB Security Camera is seamless compatibility with Windows and Linux, plug-and-play functionality eliminates the need for additional drivers
2 reviews for Arducam USB 3.0 Camera, 960 * 600@80fps High-Speed Global Shutter UVC Camera Module, 1/2.6″ 2.3MP Color AR0234 USB Webcam with 95°(D) M12 Lens for Windows and Linux
Add a review
Related Products
€148
Rico –
Nicely Built Small USB Cam
This is a nice looking usb cam that seems to be made with quality materials and built really well. The specs are good for a low to moderate field camera and it has a good frame rate that will help avoid artifacts if you’re monitoring equipment like a CNC cutter. Overall it’s a really nice camera at a fair price and a good value at the pricepoint it’s offered.
Joe –
Works well
This camera is nice and has a low degree of distortion especially for moving objects since it is a global shutter module. This is very helpful with machine learning and industrial applications where any variance in the data due to distortion can cost an organization money.
