Eaton Tripp Lite Series 2200VA Smart UPS Back Up, Sine Wave, 120V, 1950W, 7 Outlets, 2U Rackmount or Tower, Network Card Option, LCD, USB, DB9, 3-Year Warranty & 250,000 Insurance (SMART2200RM2U)
€1,108
Price: $1,107.90
(as of Jul 30, 2025 02:24:05 UTC – Details)
1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your IT equipment or destroy data. The SMART2200RM2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRM2U, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA Outlets Protect Your Connected Components
One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split into two independently switchable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART2200RM2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.

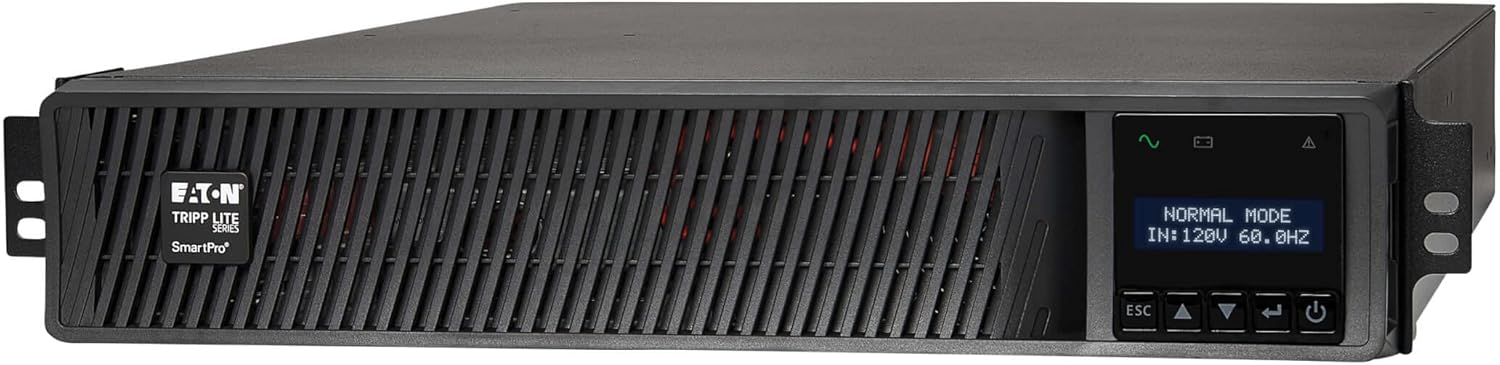

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The two-line front-panel LCD monitoring screen features ten selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a blue light means all is well, a blinking blue light means your attention is needed and a red light indicates a critical issue that demands immediate action. The interface rotates to accommodate both rack-mount and tower configurations.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.
Versatile Installation Options
You can mount the SMART2200RM2U in just 2U of space in an EIA-standard 19-inch rack using the included hardware. At 23.7 inches deep, the UPS mounts in short-depth racks and other compact spaces. You can also adapt it for tower installation using the included support stands. The 10-foot power cord with NEMA 5-20P plug connects to a compatible AC outlet.
2.2 Kilo Volt Ampere / 2200 Volt Ampere / 1920 Watts line interactive 2 U rack/tower UPS, Sine Wave
120 Volt output, Corrects brownouts and over voltages from 83 Volt to 145 Volt
0.9 Power Factor, Interactive LCD interface
NEMA 5 20P input, 4 NEMA 5 15R & 4 NEMA 5 15/20R outlets
USB, RS232, EPO and slot for Network Card options
ENERGY STAR qualified
2 Year Warranty (3 Year with Registration) & $250 K Ultimate Lifetime Insurance for connected equipment
Customers say
Customers find the uninterruptible power supply works well and is easy to install, coming with everything needed for setup. They appreciate its battery life, with one customer noting it provides backup power for network switches, and consider it good value for money, particularly for office use. The display quality receives positive feedback, with one customer highlighting its nice LCD status display. The noise level receives mixed reviews – while some find it not loud, others report it being very noisy. The cooling fan is a concern, with multiple customers reporting failures.
11 reviews for Eaton Tripp Lite Series 2200VA Smart UPS Back Up, Sine Wave, 120V, 1950W, 7 Outlets, 2U Rackmount or Tower, Network Card Option, LCD, USB, DB9, 3-Year Warranty & 250,000 Insurance (SMART2200RM2U)
Add a review
Related Products
€1,108
Brian P. –
Great Battery Backup!
These TrippLite units are a GREAT battery backup! I can’t say enough good things about them – and I would rate them far higher than an APC battery backup.I work for a Cooperative telephone company that is also a wireless Internet service provider – and we have close to 20 of this units out in the field – some for over 5 years without issues! We also install them for many other customers as well, just because they perform so well.If you have an application where you will be using a battery backup to provide backup power until a standby generator can take over the load – these units will not shut down because of the dirty voltage coming off of those generators.We have had one 1000VA unit at a customer site that had a failed cooling fan (the UPS did NOT shut down, God knows how long that fan was off for) – and TrippLite customer service shipped us our a replacement promptly, and we were able to replace the unit at a time that did not affect that customer’s business.I have also personally replaced the batteries in both the UPS itself, and the additional battery packs for these units. I was able to perform this maintenance on a production site during the middle of the day – and everything went smoothly. While it’s not the easiest to get your hands in the tight places to connect the batteries – I would have to guess that’s about the same with all UPS units with replaceable batteries.Again – great units – you will not be disappointed!
Bruce K –
Great device and works as advertised.
Brand new in the box and it works great.
B. T. –
Has not been put to the test; Loud fan
This is one of those products you don’t know how it performs until put to the test. Well, so far, the one I purchased has not been put to the test but others have performed as expected.One point that I want to make is that it has a front mounted fan that runs even on shore power. Most of the time, it’s operating at a medium-low speed which is audible in a quieter environment. However, there are times it goes to a medium-high speed which I personally find annoying in a quieter environment. Therefore, I have relocated the UPS to a more distance location.BT approved with awareness of the continuously running fan
Steve K. –
Sooooooo Loud
I bought this Tripp Lite 2200VA RM unit to replace 2 1500VA RM units from CyberPower. The CP units were virtually silent, unless a power outage occurred, then alarm beeps and fan noise were enough to raise Elvis.The bad:After installing the this Tripp Lite 2200VA unit, immediately after plugging it in, it started squealing and buzzing. This was not the fan or an alarm, this was the charging circuitry. It sounded like the caps were boiling away and about to have a critical failure.This is in my home office, and you could here it buzzing in the living room, which is 25′ down the hallway.Unplugging and letting it go into inverter mode made the sound go away. Same if you did a battery test. Plugging it back in, or after a batt test, the very loud squealing and buzzing returned.Called Tripp Lite tech support and they tried to convince me this was “normal”. He said I had purchased a data center class product and noise was expected.1) Data center UPS’ would be something much larger, like 5000VA or a dedicated UPS cabinet, not a rinky dink 2200VA UPS.2) It’s marketed for small office and home office use, where noise would be an issue.3) The Tripp Lite tech didn’t sound like he cared if my house burned down.After working in IT procurement for 25 years, I have never, ever heard a UPS that was this loud. And there was definitely nothing normal about it. The rude and disinterested tech left a bad taste in my mouth, too.The good:Great rail kit included, easy and quick to install.Liked the LCD panel and how easy it was to change settings and test the battery, with multiple levels of dimming. You could also set it to continuously scroll through the various statuses.
Dennis B –
Well made rack mounted
Rack mounted gets the unit in place with option to use included pull out slides. Good value for money and backup power
Anonymous234 –
Not being used for computer application
I am using this UPS for professional audio equipment so I am not implementing the automated shutdown features it offers for computer systems. The unit is well constructed and was easy to install in an EIA equipment rack. Using the rear rail supports was a bit of a chore as the device was meant for a server rack which normally has a much greater depth than the rack in which this UPS is mounted. A couple of cuts to the adjustable drawer glide style rear support rails with a metal cutting saw and I had attachment points at both the front AND rear of the unit. This UPS has worked without fail for over a year. We tried a few simulated power failure tests when we first bought it (the UPS feature has not been needed in the field yet) and it switched over without loss of power and ran the equipment for a more than ample period of time to allow shut down without incident.
Travis W. –
Unreliable
Failed after 3.5 years, just out of warranty. Worked fine up until recently — unit died in the middle of the day with no power outage, and will not turn back on. It’s toast.
HE Wyatt –
Good for security systems.
I needed a new UPS for my home security system and after spending much research, run across this one. It had everything that I needed that some other brands had some features and not others. This is not loud like some said it was. I guess I was used to my old one. What I like about this one, is it can except more battery packs without loading the system itself.
CDN_Buyer –
Great features and capacity for price.
Terry –
delivery was awesome was here the day before it said it would arrive. unit works perfectly.
Erick –
works fine does what its suppose to do
